Words: Harrys Euro Photos: Deven Solanki
We’re back at it, and honestly? We couldn’t help ourselves. The project Golf is back on the hoist, and while the original plan was to play it safely with the usual Stage 1, 2, 3 progression… Well, that’s just not how we roll. We like to push buttons and break boundaries. So, we’ve binned the factory four-banger and crammed in the legendary 2.5L DAZA five-cylinder straight out of an RS3.
Why the madness? Simple: Because we can. Look, we love a fast Golf, but they can all start to look and sound a bit “same-same” after a while. We wanted something that stands out in a crowd. This swap has been done overseas, sure, but in NZ? Nope, and it’s about to change the whole DNA of the car.
We’re splitting this build into two parts because, let’s be real, modern Euros are a different breed. This isn’t like Japanese builds where you drop a motor in, plug in a ECU, and send it.

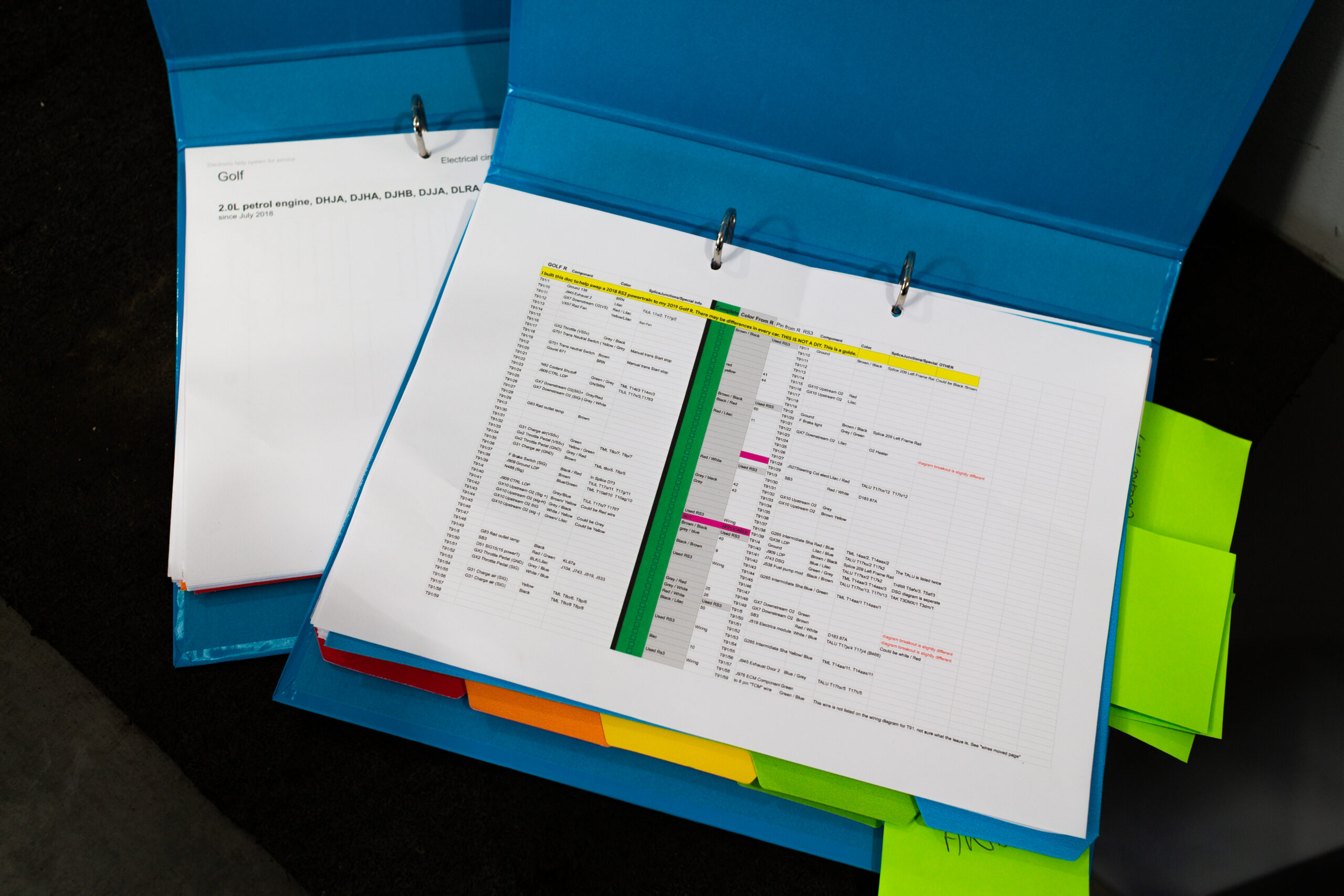

Dropping the motor in is the easy bit, the real headache is the electronics. These cars are basically supercomputers on wheels, and we want everything to work like factory: no issues with speed sensors or losing access to launch control. We need it all to function exactly as Audi or VW intended so we can send our nine-second Golf wherever we want.
Back in 2012, the Volkswagen Group introduced the MQB platform (Modular Transverse Matrix). In simple terms, it’s a shared design for cars with a transverse-mounted engine. That means things like axle position, pedal box layout, and engine placement all follow the same basic structure across different models. Because of this, the Mk7 Golf and the 8V A3/S3/RS3 are actually very similar underneath. They might have different engines, track widths, and badges, but the core chassis design is the same.
That shared layout is what allows the 8V RS3 engine and drivetrain to fit into the Mk7 Golf without too much drama. The engine mounts themselves are different, but they still bolt into the same spots on the chassis, and the same idea applies to most of the main drivetrain components. So, is it just an easy bolt-in job? Yes… and no.
The big pieces like the engine, gearbox, and diffs will bolt into the Mk7 Golf using the RS3 mounts. But that’s where the easy part ends. All the supporting systems — cooling, heat exchangers, air conditioning, charge pipes, power distribution, and especially the wiring — are completely different. So while it is technically a bolt-in conversion, it still takes a huge amount of work to make everything function properly.
The first step was finding a donor engine. These DAZAs aren’t easy to come by — and they’re definitely not cheap — but luckily we already had a parts car in storage. That meant we had not only the engine, but also the complete driveline: gearbox, transfer case, driveshafts, rear diff, and more. For a swap like this, that’s about as good as it gets.

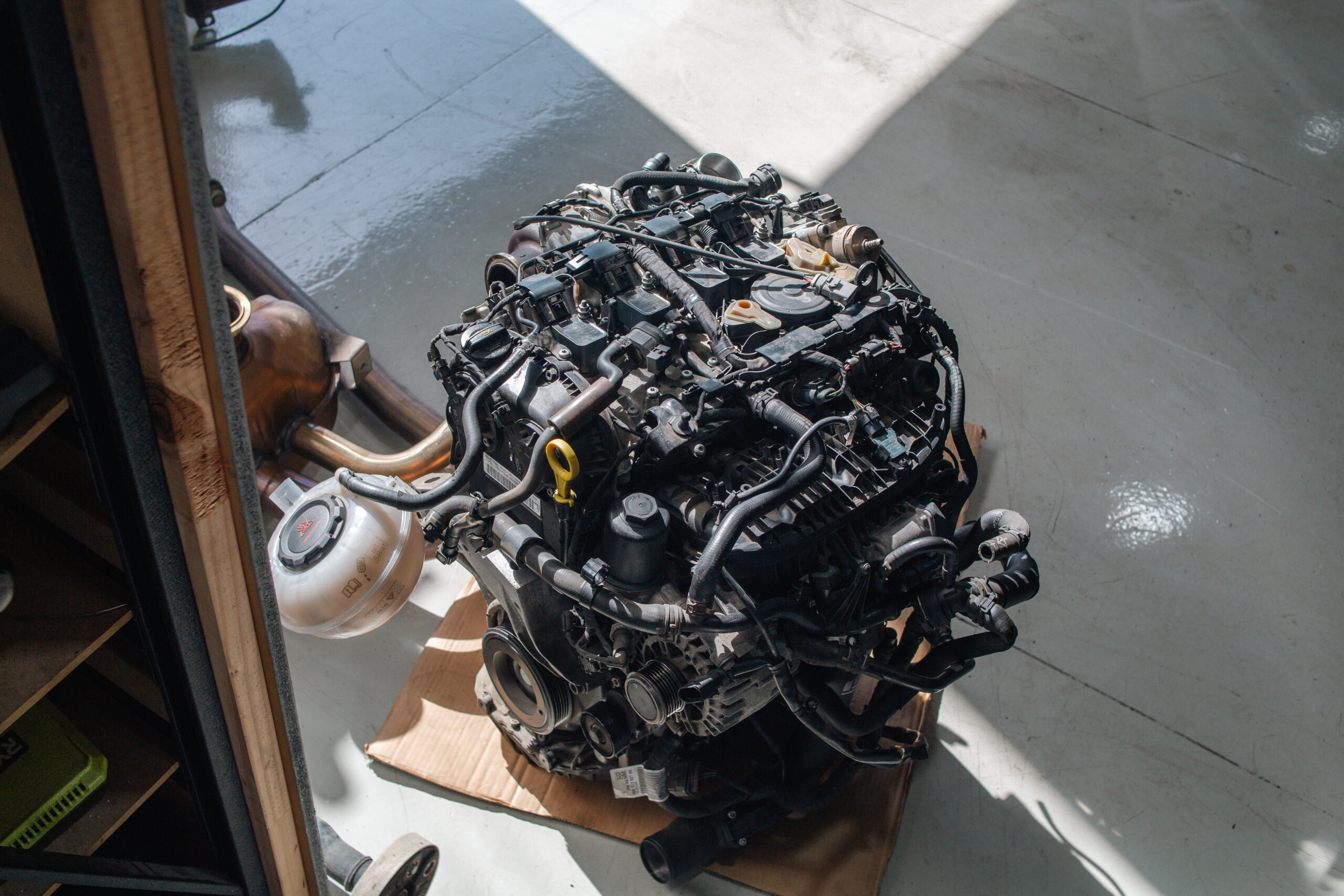

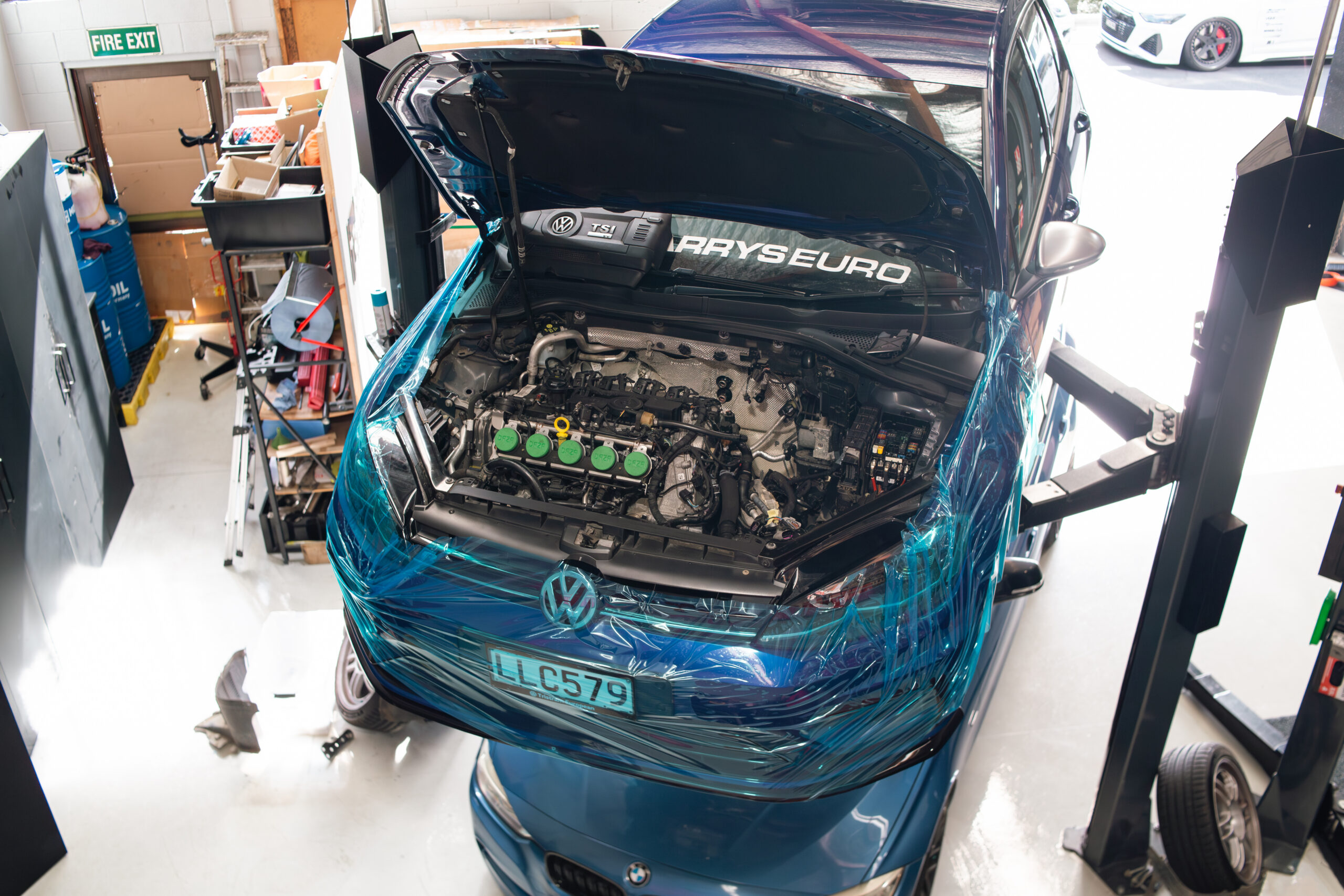

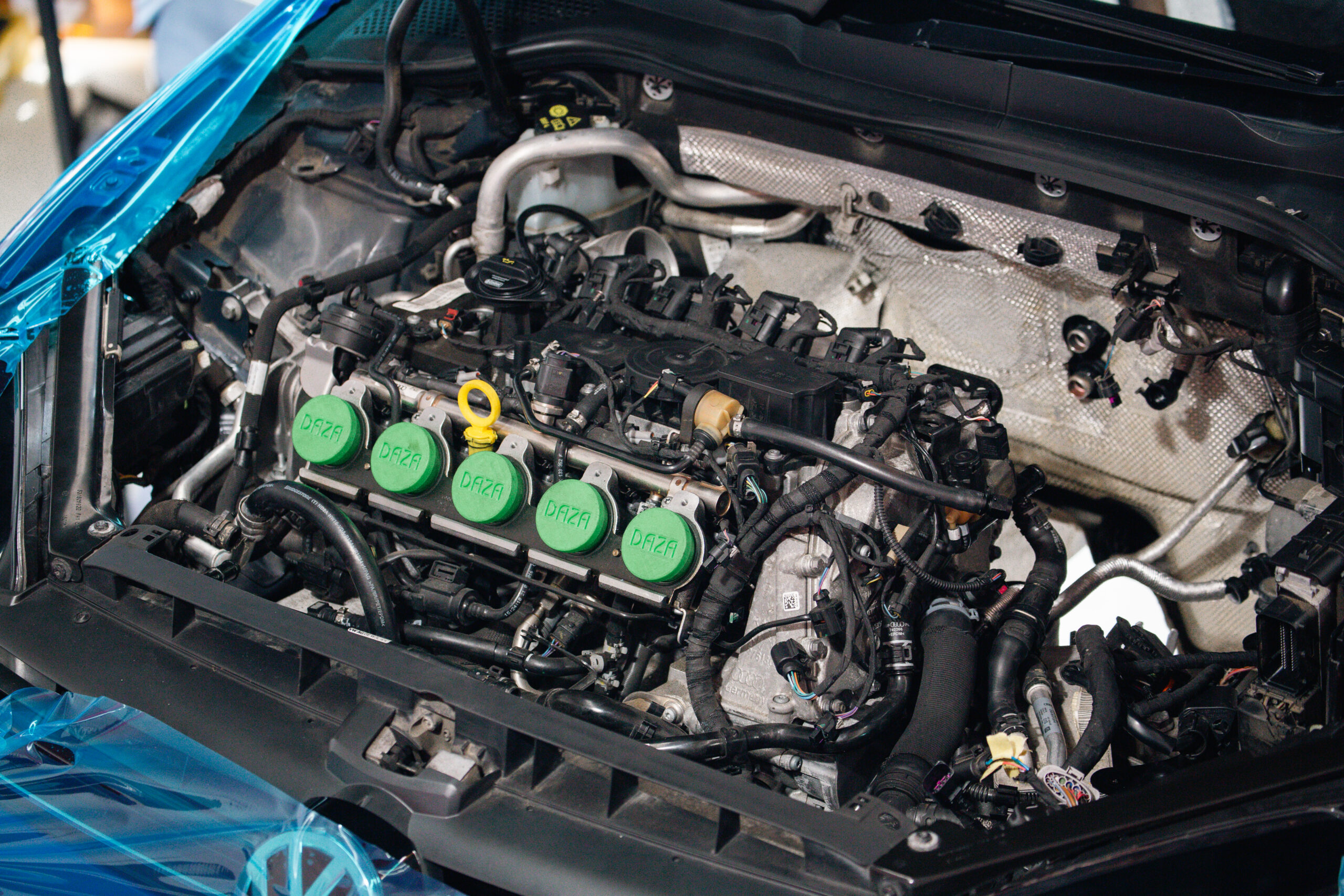

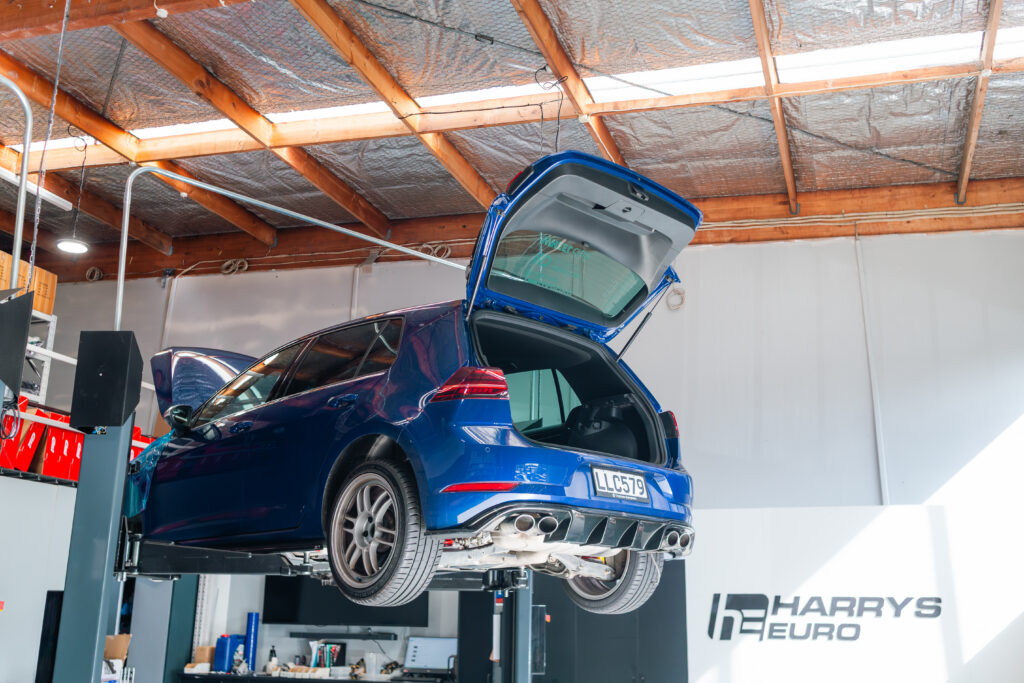

We set out stripping the RS3 to a bare shell, making sure every part was ready for install when we needed it. Then it was time to roll in the project Golf. Onto the lift and it was all hands on deck. Subframe out, engine and gearbox out in a few hours — then up went our Stage 3 DAZA (yes, you heard that right… this is going to be a 700+hp Golf). With the engine and gearbox now fitted, we’re working through what needs to be amended, adjusted, or fabricated.
In the next issue, we sort the wiring, get it running properly, and finally hit the strip to see if this thing can crack a nine-second pass.
